Rotary Kiln Used In Cement Plant
Basic Info
Model No.: 2.5x50m
Product Description

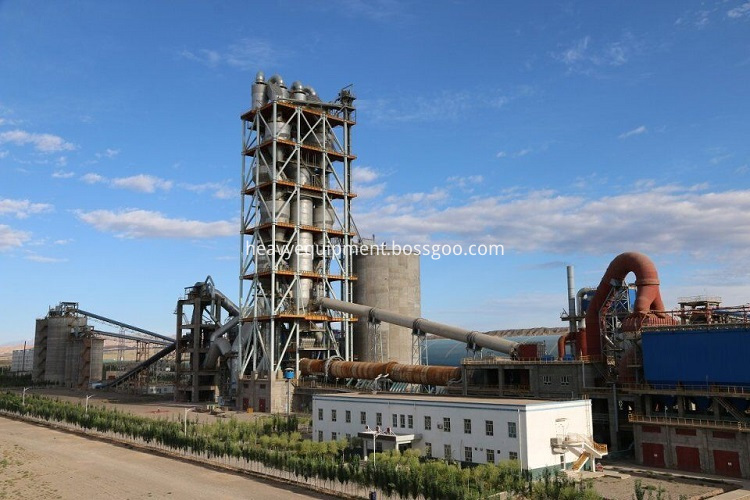

Rotary Kiln Used In Cement Plant
Rotary kiln is used for making of cement clinker and there are dry and wet methods to make cement. metallurgy chemical kiln is used for magnetic roasting of iron ore and oxidizing roasting of chrome and nickel in the steel factory; baking high-alumina mine in the refractory material factory.
Applications of Rotary Kiln Used In Cement Plant
Rotary kiln, namely clinker rotary kiln, belongs to building material equipment, which can be divided into Cement rotary kiln, metallurgy chemical kiln and Limestone rotary kiln according to different materials.
1.Limestone rotary kiln is used for making of cement clinker and there are dry and wet methods to make cement.
2. Metallurgy chemical kiln is used for magnetic roasting of iron ore and oxidizing roasting of chrome and nickel in the steel factory; baking high-alumina mine in the refractory material factory; baking chamotte and alumina in the aluminium factory and baking chrome ore and chrome powder in the chemical plant.
3. Limestone rotary kiln is used for baking active lime and dolomite in the steel factory and ferroalloy factory.
Working Principle of Rotary Kiln Used In Cement Plant
The rotary kiln is cylindrical container, tilting slightly to the horizontal axis and slowly rotating around its axis. The material to be processed is sent to the upper end of the cylinder. As the kiln rotates, the material moves downward gradually and may undergo a certain amount of agitation and mixing. Hot gas is sometimes the same as the furnace direction and process material, but usually the opposite direction (Ni Liu). Hot gas can be produced in an external furnace, or can be produced by flame in a kiln. This flame is projected from the burner tube (or ignition tube). It looks like a big burner. Fuel can be gas, oil or coal powder.
Features of Rotary Kiln Used In Cement Plant
1. Support device: advanced shaft structure, automatic temperature measuring device, electric heating.
2. Grab wheel: including mechanical wheel and hydraulic two.
3. Gear: single or double. Frequency conversion motor, variable frequency motor and variable frequency motor are used to control rotation speed. Reliable, energy-saving and efficient.
4. Cylinder cushion: the lower pillow has three types: fixed, zooming and floating. The structure is simple, the replacement is convenient, and the oil cylinder is not damaged.
5. Sealing equipment: According to the type of kiln can be selected a variety of, including cylinder edge seal, spring edge seal, graphite block seal and the above combined seal. Feather adapted to cylinder rotation and swing. The sealing effect is very good.
6. Kiln head covers: fixed and flexible.
Specification of Rotary Kiln Used In Cement Plant
model barrel diameter (mm) barrel length (mm) slope (%) capacity (t/h) speed (r/min) motor power (kw) weight (t) YZ1225 1200 25000 4 3 0.53-5.25 22 34 YZ1632 1600 32000 4 3.5 0.53-5.25 15 46.82 YZ1828 1800 28000 4 4 0.28-2.84 30 59.39 YZ1845 1800 45000 4 4.5 0.28-2.84 30 80 YZ1636 1600 36000 4 1.2-1.9 0.26-2.61 22 51.023 YZ1939 1900 39000 4 1.6-3.4 0.31-2.82 37 70.704 YZ2044 2000 44000 3.5 2.4-4 0.22-2.26 37 97.135 YZ2245 2200 45000 3.5 3.2-5.3 0.23-2.25 45 125.462 YZ2550 2500 50000 3.5 6.2-7.4 0.68-1.45 55 179.606 YZ2555 2500 55000 3 7.3-9.8 0.79-2.38 55 191.203 YZ2820 2800 20000 4 15-18 0.8-1.45 75 186.373 YZ3028 3000 28000 4 18-23 0.8-1.45 75 180.737 YZ3060 3000 60000 3.5 16-20 0.49-2.41 90 272.510 YZ3226 3200 26000 4 22-27 0.8-1.45 90 185.107 YZ3255 3200 55000 3.5 17-23 0.1-1.52 75 271.673 YZ3529 3500 29000 4 28-40 0.16-1.38 110 238.031 YZ3560 3500 60000 3.5 28-40 0.65-2.25 125 347.872
