Tunnel boring machine coal mining roadheader machine

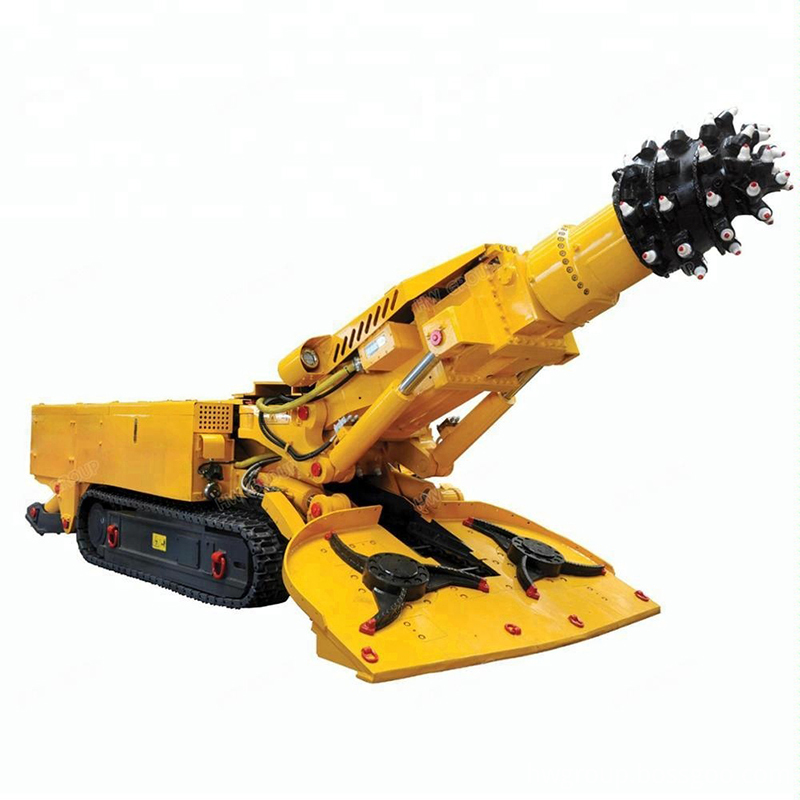

  • Tunnel boring machine coal mining roadheader machine
  • Tunnel boring machine coal mining roadheader machine
  • Tunnel boring machine coal mining roadheader machine
  • Tunnel boring machine coal mining roadheader machine

Tunnel boring machine coal mining roadheader machine

    Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 5-7 Days
    Packaging: standard export package
    Productivity: 100 sets per month
    Brand: Hengwang
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 100 sets per month
    Certificate: ISO
    HS Code: 8430390000
    Port: Qingdao Port,Shanghai Port,Ningbo Port

Basic Info

Model No.: EBZ45

Product Description

Tunnel boring machine coal mining roadheader machine



1.tunnel boring machine has internal and external spray, and the internal spray is the spray behind the teeth, so as to strengthen the external spray and reasonably design the form of external spray. The internal spray has the function of water leakage detection.

2.coal mining roadheader machine High configuration, advanced technology, good reliability, low center of gravity and good machine stability; The cutting part is retractable with a retractable stroke of 550mm.

3. coal roadheader machine Large inclination Angle at the bottom of the shovel plate, large ground clearance and strong climbing ability of the whole machine. The motor directly drives the star wheel, which is conducive to loading and bottom cleaning;

4.Mini tunneling roadheader The horizontal and straight structure of the intermediate transport plane is formed by four-link rod slippage with the shovel plate. When the shovel plate is lifted or horizontal, the length of the scraper chain of the first transport plane changes little;

5.Roadheader High gantry, smooth transportation, double-chain scraper transport, high-strength wear-resistant steel plate is adopted in the chute to ensure the service life of chute and scraper;

6. The body and rear support are welded with thick plate box structure, with good rigidity and high reliability;

7. The walking drive system is highly integrated with internationally advanced motor and reducer, and the output torque is highly adaptable to the operation of large inclination Angle.

8. The hydraulic system adopts constant power, pressure cutting and load sensitive control;


tunnel boring machine


Tunnel boring machine coal mining roadheader machine Parameter

Name

EBZ 120

EBZ 75

EBZ 45

Cutting power

120KW

75KW

45KW

Cutting head speed

42r/min

60r/min

65r/min

Cutting ability

70MPa

50MPa

40MPa

Retracting capacity of cutting mechanism

240mm

550mm

550mm

Walking speed

9m/min

12m/min

12m/min

Climbing ability

±18°

±16°

±18°

Rotational speed of star wheel

30r/min

30r/min

30r/min

Chain speed of scraper

0.85m/s

0.65m/s

0.65m/s

Total installed power

195KW

105KW

70KW

Power supply voltage

1140/660V

1140/660V

380/660V

Maximum heading height

3.75m

3.50m

3.50m

Maximum positioning driving width

5.0m

4.20m

3.80m

Undercover

240mm

300m

350m

Ground specific pressure

0.14Mpa

0.12Mpa

0.12Mpa

Ground gap

250mm

200mm

180mm

Throughput

50-80t/h

20-50t/h

8-20t/h

Machine weight

35t

18.8t

11.8t

Dimension(L*W*H)

8.74*2.8*1.55mm

7.5*1.6*1.5m

7.5*1.6*1.5m


Tunnel boring machine coal mining roadheader machine Figure Photos


underground Roadheader

tunnel roadheader

coal mine tunnel roadheader


roadheader
